COMPLETE
management of the plant

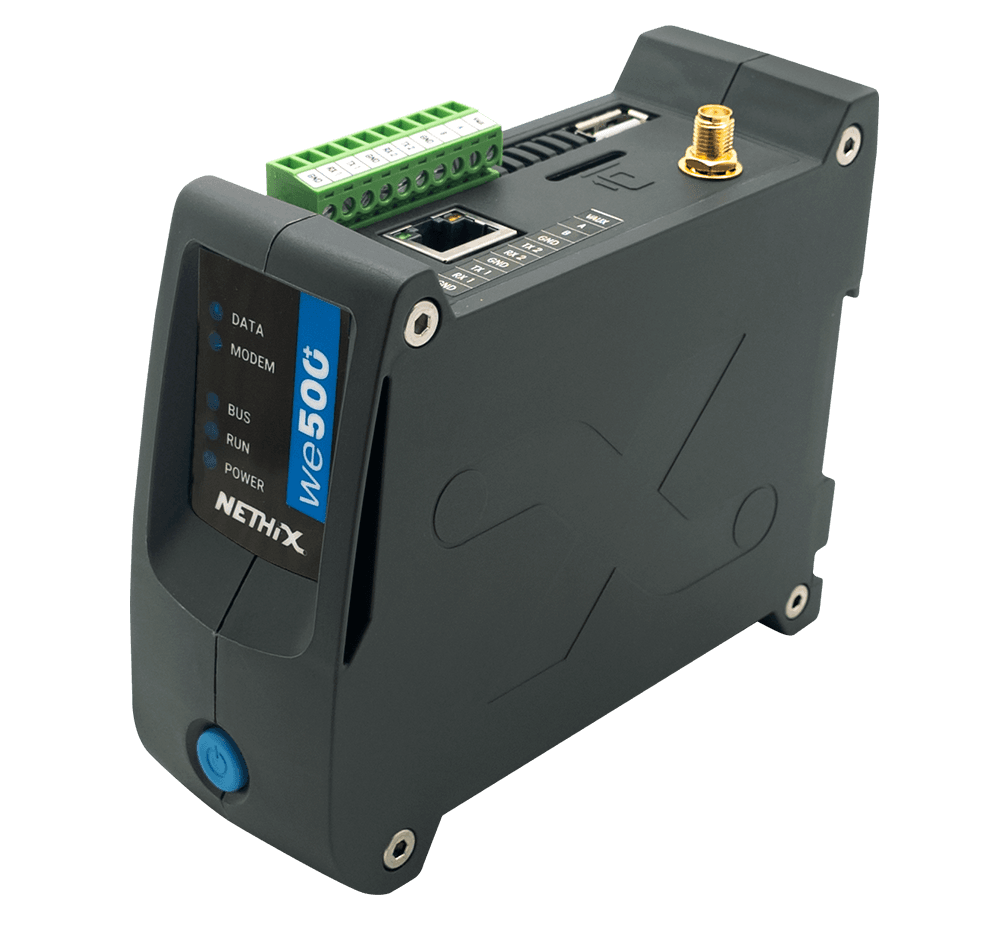

INDUSTRIAL GATEWAY

We500+ is a programmable industrial gateway that allows an extensive control of machines thanks to the advanced operating logics.
The MQTT/Modbus (RTU and TCP/IP) protocols, together with the existing I/O, allow the monitoring and control of a high number of signals. All collected signals can be delivered to Nethix Cloud or to any third party Cloud.
The VPN (Standard Open VPN) is also supported and allows to access remotely any device, independently from the used connection.
The device can also be used as datalogger, allowing the storage of a high quantity of data inside the internal memory (or on external USB support); data can be then displayed on the Web Interface or exported at any time.

APPLICATIONS

- Water and gas remote monitoring
- Energy and environment
- Industrial automation
- Predicitive maintenance
- Remote access to PLC/HMI/PC
- Building automation
- Broadcast and telecommunications

DESIGN TO MEET YOUR REQUIREMENTS

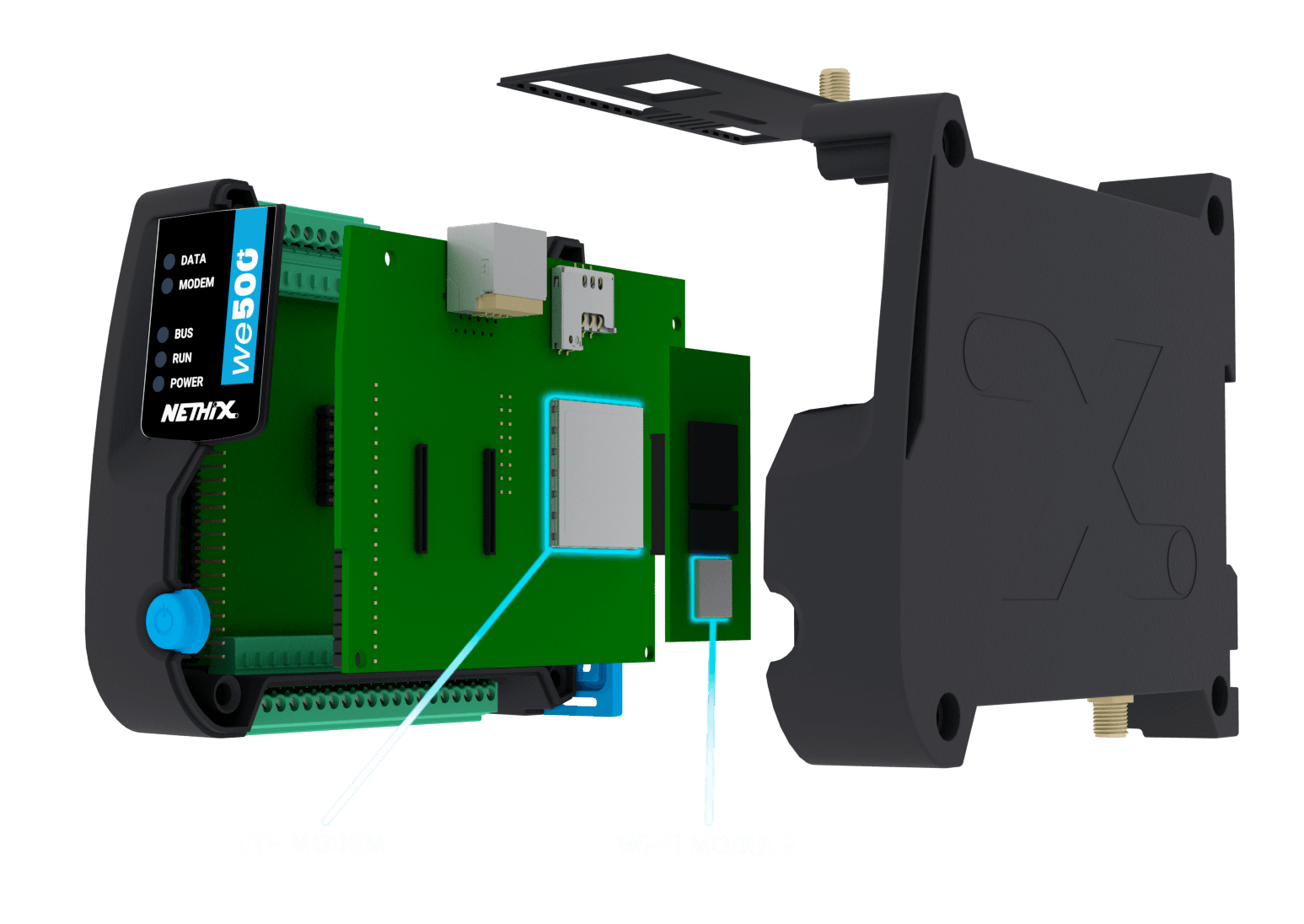

WE500+ is available in 2 versions: with or without LTE modem.

WE500+ LTE

- LTE
- Wi-Fi
- Ethernet

WE500+ LAN

- Wi-Fi
- Ethernet

WEB SERVER


The configuration of WE500+ is carried out on the integrated, remotely accessible Web Server.
Through any browser, with no need of any additional software, it’s possible to access the device and set thresholds , monitor the system status in real-time, change parameters and set-points, display or transfer the acquired data.

CHAT


An istant messaging service is available to communicate with the device in real-time: to send commands, get alarms and notifications.

USE MODALITIES

WE500+ offers different ways to communicate:


STANDALONE

Point-to-Point communication and data delivery from the machine to the Cloud/Operator.


MULTI MODE

The devices are nodes of a network, where the single nodes can communicate with each other thanks to MQTT protocol.


CLIENT/SERVER

Two or more devices communicate each other according to a client-server architecture.


REMOTE ACCESS

Remote communication with any device or machine connected to one of the serial interfaces (or USB).

TECHNICAL SPECIFICATIONS

Power Supply9-32 VDC
ConnectivityIntegrated LTE modem
LTE (2600-2100-1800-900-800-700)
UMTS (2100-1800-900)
GSM (1800-900)
Integrated Wi-Fi module
WiFi: 2.4 GHz (b/g/n)
Ethernet
10/100 Mbps
Inputs2 ANALOG INPUTS
0-5 VDC / 0-10 VDC / 0-20 mA / 4-20 mA / NTC
8 DIGITAL INPUTS in dry contact
Mode: Counter | On/Off | Hour meter | Flow meter
Outputs2 RELAYS OUTPUTS
1A 230Vac/30VDC
Data deliveryNethix Cloud | Email report | Chat | HTTP/HTTPS | MQTT/MQTTS | FTP/FTPS | Dropbox
PortsUSB Type-A (for data storage on USB device)
2 RS232 serial ports
1 RS485 serial port
Consumptionaverage 500mA, peak 2A
Dimensions (L x W x H)45 x 120 x 100 mm
Weight280g
Working temperature-15°C - +55°C
Storage temperature-25°C - +85°C
Humidity0% - 80% (non condensing)
