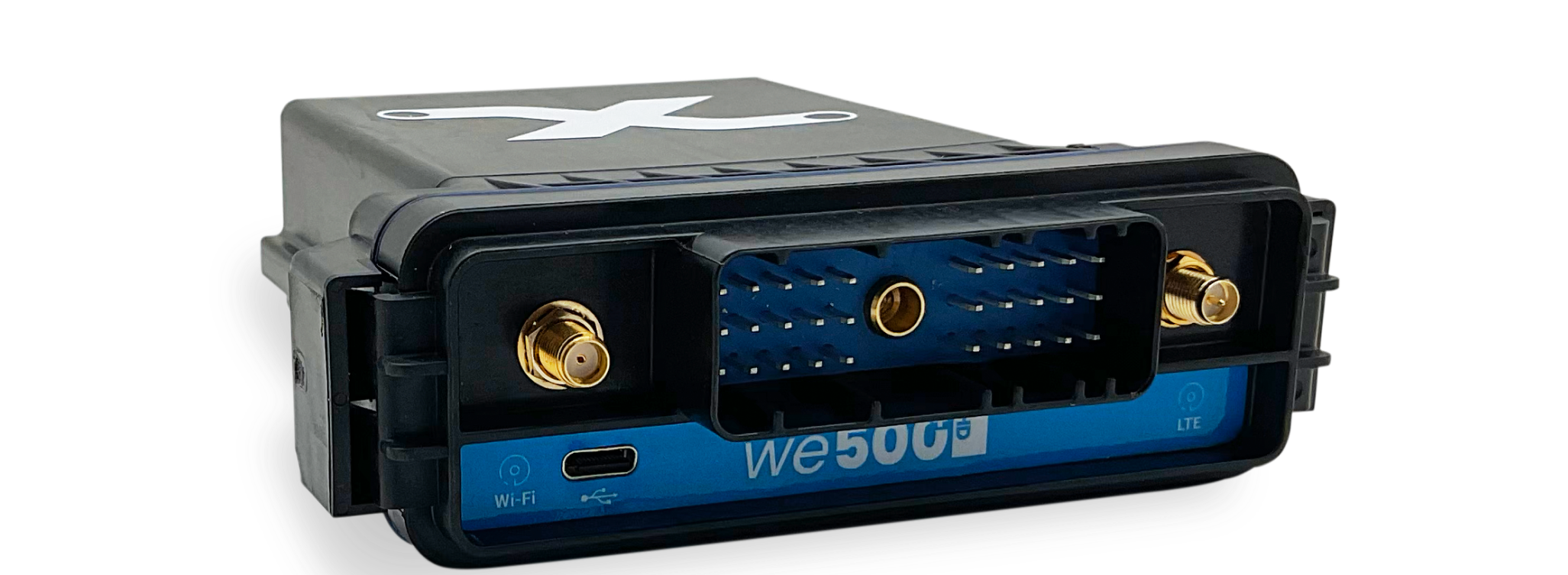

WE500+ HD is designed for those who need a high performance gateway, programmable and expandable, but at the same time robust, waterproof and suitable for application in the most critical environments.
Its form factor makes it the best solution for application in the automotive. WE500+ HD, combined with an external antenna, make the geographical coordinates available, thus allowing the geolocalization of the plant at any time: this function makes WE500+ HD the ideal solution for the management of mobile plants or fleets of vehicles.
| Part number | 90.17.001 |
| Power supply | 9-32 VDC |
| 30 pins connector | 1 GPS port 1 Serial port RS232 1 Serial port RS485 2 Relay outputs (1 A 230 VAC/ 30 VDC) 2 Analog inputs 0-5 VDC | 0-10 VDC | 0-20 mA | 4-20 mA | NTC 8 Digital inputs (dry contact) Mode: Counter | On/Off | Hour meter | Flow meter |
| Ports | USB Type-C |
| Consumption | average 500 mA, peak 2 A |

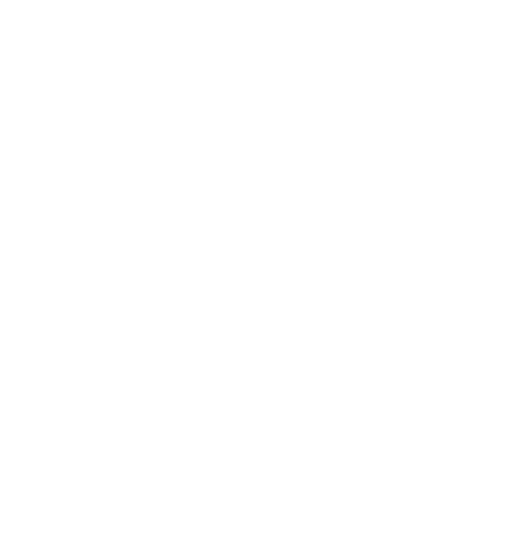

| Dimensions ( L x W x H ) | 130.3 x 134.4 x 41.3 mm |
| Weight | 318 g |
| Working temperature | -15°C ― +50°C |
| Storage temperature | -25°C ― +85°C |
| Protection grade | IP68 |
