designed for
INDUSTRY

MODULAR DEVICES FOR IIoT

The programmable and expandable modules of the Nethix series WE15X are the ideal solutions for remote and monitoring control in IIoT area.
Thanks to the Modbus RTU Protocol on RS485, the devices of the WE15X series can manage a high number of additional inputs/outputs, beside those already available on board, using the expanders of the XP series. All signals collected from the field can be delivered to the Cloud offered by Nethix or any third party. The VPN (Standard Open VPN) is also supported and allows to access remotely any device, independently from the used connection.
Through programmable logics the WE15X devices allow to manage alarms and/or automated actions.

APPLICATIONS

- Smart systems
- Pump stations remote control
- Silos monitoring
- Water leak detection
- Water quality control
- Water lifting systems
- Weather monitoring
- Meter reading

TWO MODELS - TWO CONNECTIVITIES

WE151 and WE152 differ in connectivity, all other features remain the same:

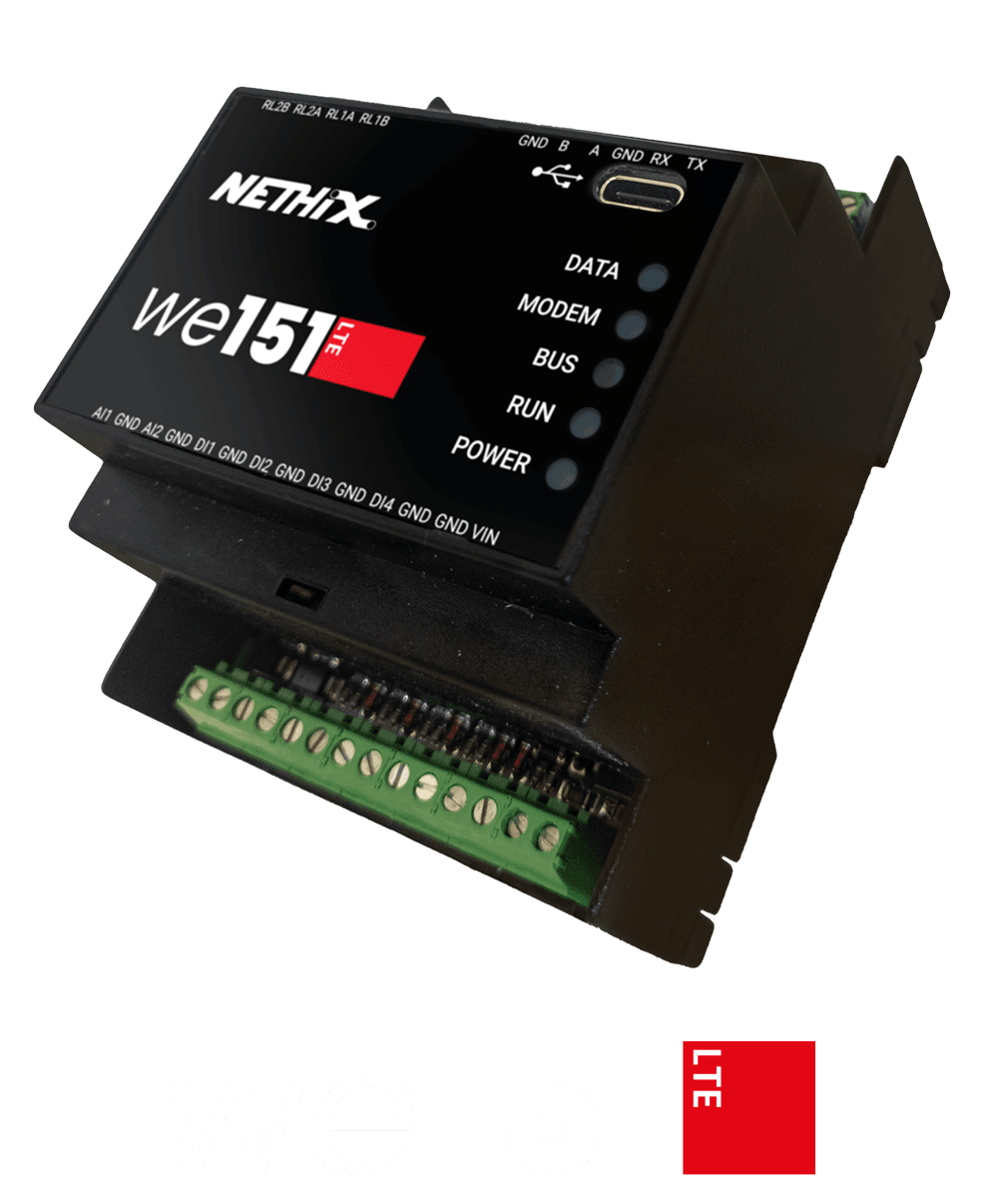

Integrated LTE Modem

Communication on mobile network

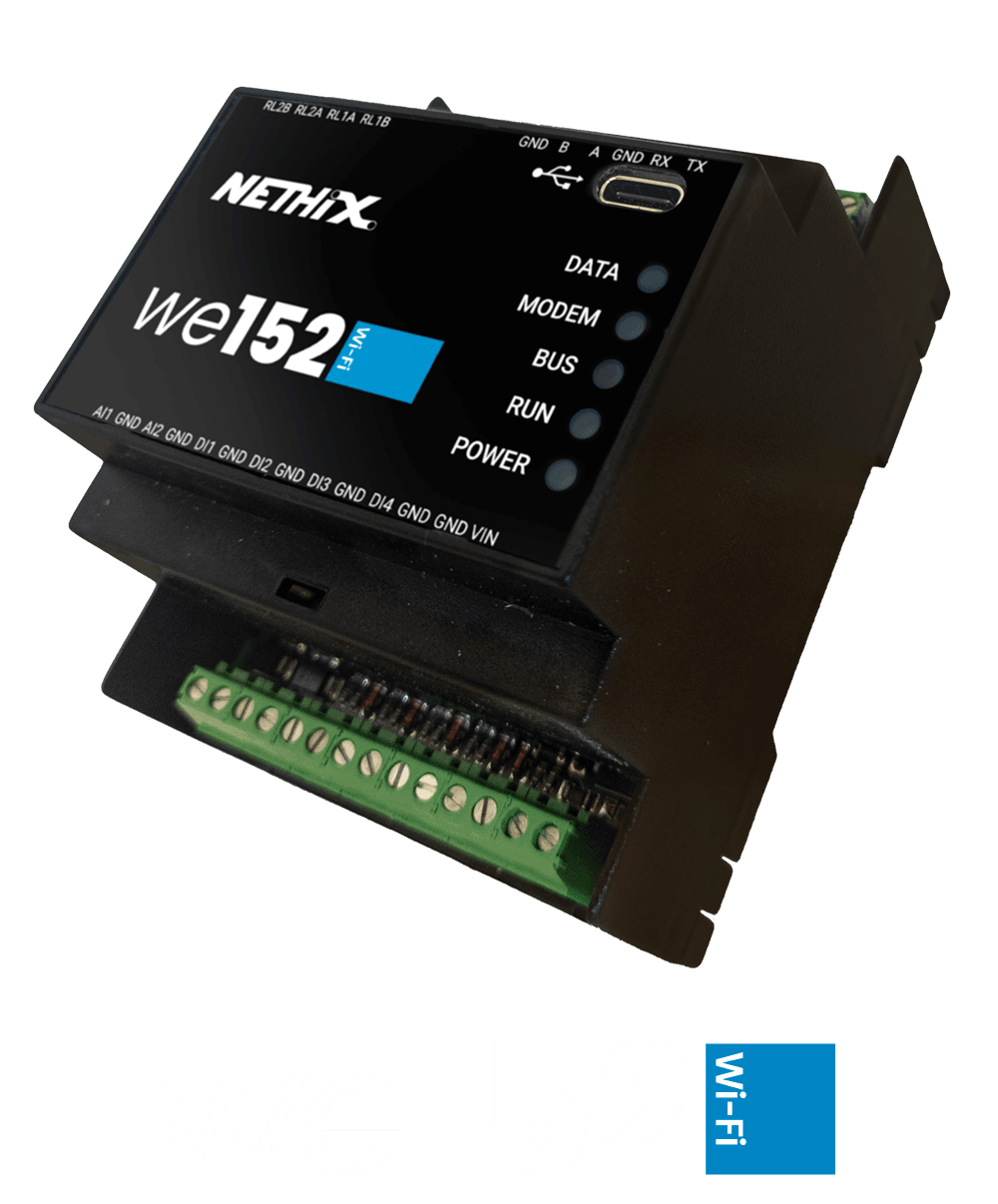

Integrated Wi-Fi module

Communication on Wi-Fi network

WEB SERVER


The device configuration of the WE15X series is made on the integrated, remotely accessible Web Server.
Through any browser, with no need of any additional Software, it’s possible to access the device to set alarm thresholds, monitor the system status in real-time and change setpoints and operational parameters.

CHAT


An instant messaging service is available to communicate with the devices in real-time: to send commands, get alarms and notifications.

USE MODES

WE15x devices offer different way to communicate:

CLIENT/SERVER

Two or more devices communicate each other according to a client-server architecture.


STANDALONE

Point-to-Point communication and data delivery from the machine to the Cloud/Operator.


MULTI NODE

The devices are nodes of a network, where the single nodes can communicate with each other thanks to MQTT protocol.

Ready to use

Nethix wall-mounted switchboard is designed for those, who need a ready-to-use solution, where cable connections and device positioning are already prepared.
The wall-mounted switchboard by Nethix contains a WE151/WE152 controller, a PS150 powersupply unit and a differential switch, already mounted and interconnected.
The installation has never been easier: the installer just needs to set the connections to thedevices to be controlled and to the electrical supply network and then start using the kit.

Download datasheet

TECHNICAL SPECIFICATIONS

Power supply9-32 VDC
Connectivity        Integrated LTE module
        LTE (2600-2100-1800-900-850-800 MHz) / GSM (900-1800 MHz)
        Integrated Wi-Fi module
         WiFi: 2.4 GHz (b/g/n)
Inputs2 ANALOG INPUTS
0-5VDC / 0-10VDC / 0-20mA / 4-20 mA / NTC
4 DIGITAL INPUTS in dry contact
Mode: Counter | On/Off | Hour meter | Flow meter
Outputs2 RELAYS OUTPUTS
1A 230Vac/30VDC
Data deliveryNethix Cloud | Email report | Chat | HTTP/HTTPS | MQTT/MQTTS | FTP/FTPS
PortsUSB Type-C (only for configuration)
1 RS232 serial port
1 RS485 serial port
Consumptionaverage 500mA, peak 2A
Dimensions (L x W x H)70 x 65 x 90 mm
Weight150 g
Working temperature-15°C - +55°C
Storage temperature-25°C - +85°C
Humidity0% - 80% (non condensing)
