accessories

A wide range of accesories for remote management completes the Nethix offer:
2G/3GAntennas
RF cables for antenna connections
Power sources

UPS500
UPS500 is a switch mode power supply with backup battery pack, designed and developed for use on all Nethix's remote monitoring and control devices..

UPS500 has been developed as a complementary product for WE500.
Besides its main switch mode power supply functionality, UPS500 can also detect the status of the network and of the internal battery pack.

Network adn battery charge status
Through the two available outputs, UPS500 can detect network or battery power outages and send a signal to WE500 that, in turn, informs one or more selected users and power-off WE500 safely, to avoid uncontrolled switch-offs.

Easy to install
Suitable to be DIN-BAR mounted (according to EN60715), UPS500 is complete with electronic thermal protection and secured against short circuits. It includes 2 LEDs for signaling the presence of output tension and the battery-charge status.

Technical features UPS500
Input voltage range (nominal) : 195-265 Vac / 50 Hz
Output voltage (nominal): 17 VDC
Output current (nominal): 1.5 A
Power: 24 W
Efficiency: 0.8
Output regulation: +/-4%
Frequency: 100 KHz
Isolation: 3000 Vac
Set of 10 NiMh 2200 Mah batteries
Photo Isolated output for signaling the network presence (220 Vac)
Photo isolated output for signaling battery low tension
Operational temperature: -10°C / +50°C
Storage temperature: -25°C / +85°C
Humidity: 90% non condensing
Cooling system: by natural convection
Protection: electronic (short-circuit, overload and thermal)
CE certification: EN60715, EN60950, EN50081-1, EN5081-2, EN5022, EN55024
Dimensions: 45x120x100mm
Enclosure: DIN-BAR mountable dark gray plastic enclosure

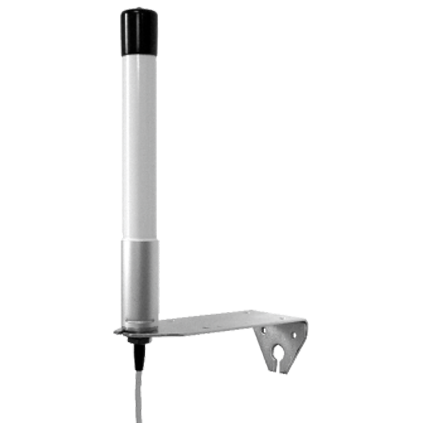

High-gain omnidirectional antenna
Penta band high-gain omnidirectional antenna for external use. Stick mounted. Thanks to its excellent mechanical resistence and electrical characteristics, this antenna can be used in remote areas or noise-prone environments where reliability is fundamental.

Gain 10 dBi
Impedence 50 Ohm
Power 100W
Frequence: 850MHz, 900MHz , 1800MHz, 1900MHz, 2100MHz
VSWR < 1.6:1
HPBW - horizontal 360°
HPBW - vertical 10°
Linear vertical polarization
Length 5 meters
Weight 420g
Height: 80cm
Diameter: 2cm
Relative humidity: 100% a 25°C
Temperature range: -40°C / +85°C
IP66 protection
Cod. 90.90.025

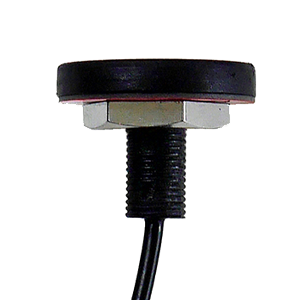

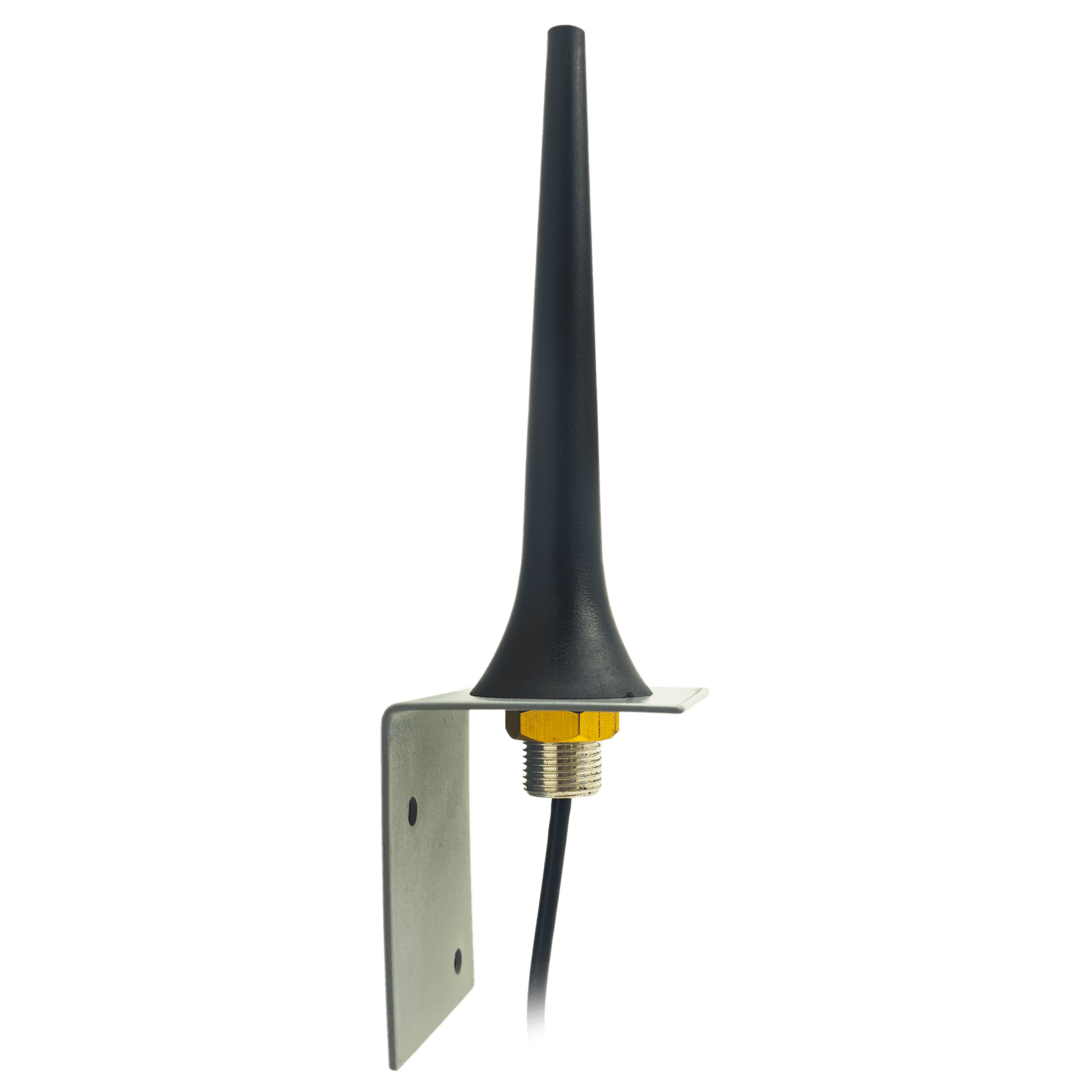

All Band Antenna
Screw mounted antenna
Omnidirectional antenna for internal and external use. It requires a metallic base used as ground where the screws are fixed. It's normally used in standard remote management applications and M2M solutions where it is necessary to install it outside the electrical box or building
Cod. 90.90.005

Frequency: 668-960-1710-2100-2400-2700 MHz
Gain(dBi): 3.8
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization:Vertical
Antenna mast Length(mm): 95±1
Cable Length(m): 5
Cable Type:RG174
Connector :SMA-M FME etc. Mounting :Screw(Hole/Roof)
Storage Temperature: -45°C to+85°C
Operating Temperature : -45°C to+85°C

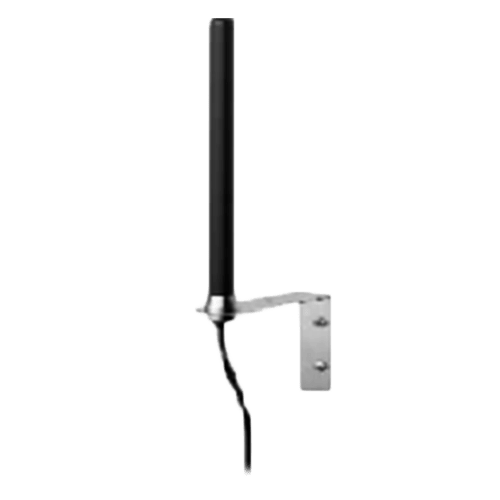

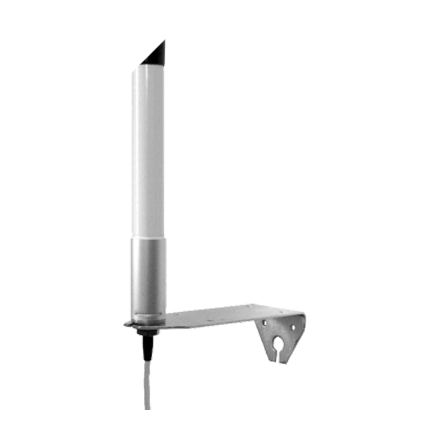

High-gain omnidirectional antenna
Quad band high-gain omnidirectional antenna for external use. Wall mounted. Normally used when signal strenght is weak and a directive antenna cannot be used. Thanks to its excellent mechanical resistence and electrical characteristics, this antenna can be used in remote areas or noise-prone environments where reliability is fundamental.

Gain 2.2 dBi
Impedence 50 Ohm
Frequence: 900MHz , 1800MHz, 1900MHz, 2100MHz
VSWR < 2.1
Vertical polarization
Male SMA connector
Length 5 meters
Materials: black ABS
Weight 172g
IP66 protection
Relative humidity: up to 95%
Temperature range: -40°C / +85°C
Cod. 90.90.024

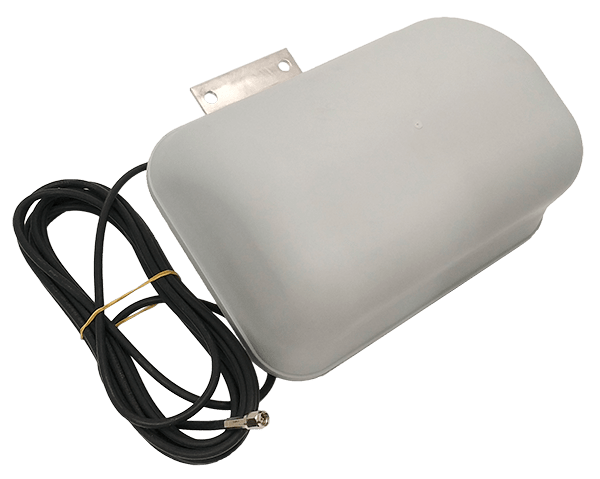

Professional high-gain directive antenna
Dual band directive antenna (900/1800 MHz) for external use. Wall or stick mounted with included accessories. It is used when the carrier's signal is low. For a proper use, it is directed to the base station.

Gain 9 dBi
Impedence 50 Ohm
Frequence: 900/1800MHz
In band VSWR < 1.5:1
Vertical polarization
External use
Male SMA connector, 5 meters low loss cable
Small size with protective plastic case
Size: 220 mm x 165 mm x 110
Temperature range: -20° / +65°
Cod. 90.90.019

2G/3G/ Antennas
Antennas are a fundamental element of a remote management system. Choosing the right one for a given application according to the characteristics of the environment is a must for having a reliable system.

The element that must be considered when choosing an antenna are:
Usage: Internal or external
Direction: omnidirectional or directional
Frequence: dual or quad band, 2G (GPRS) or 3G (HSPA)
Gain: standard or high-gain

Magnetic base antenna
Omnidirectional triband antenna for internal use. It provides a magnetic base that allows its use on metallic surfaces without special mounting opertations. It's very practical and widely used in the standard remote management applications and M2M solutions in the industrial and home automation sectors where there are not critical problems for the signal propagation.

Gain 2.1 dBi
Impedence 50 Ohm
Frequence: 900/1800/1900MHz
In band VSWR < 2:1
Vertical polarization
Internal use
Male SMA connector, 2 meters RG174 cable
Material: black ABS
Size: h. 110 mm / d. 32 mm
Temperature range: -20° / +65°
Cod. 90.90.001

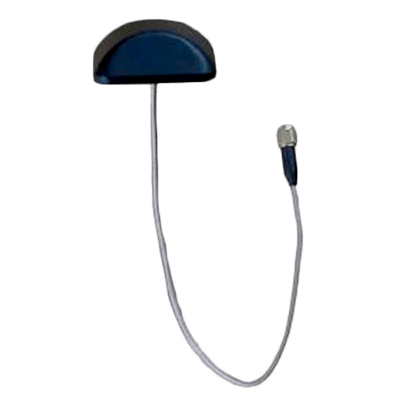

Anti-theft antenna
Dual bandomnidirectional antenna for external use. Its low profile renders it specially resistant from the mechanical point of view. Mounting takes place in a metallic surface using 4 screws that are non reachable from the outside.

Gain 2 dBi
Impedence 50 Ohm
Frequence: 900/1800MHz
In band VSWR < 3:1
Vertical polarization
Male SMA connector with 30cm low loss cable
External and internal use
Size: 50 x 43 x 20 mm
Cod. 90.90.016

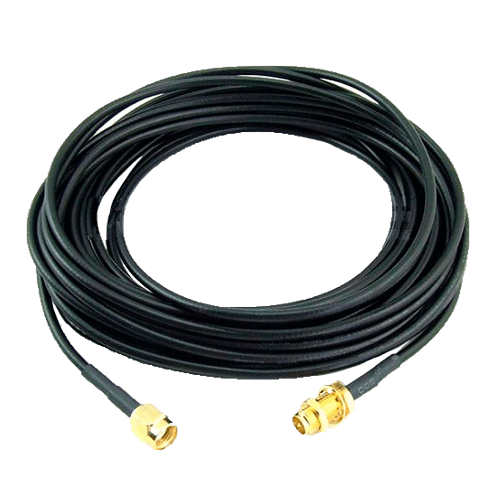

Cable extensions and RF accessories
Low-loss coaxial cables that an antenna installation in a distant place with respect to the remote management device.

Low-loss RF SMA cable extension, 2 metri, cod. 90.91.002
Cavo prolunga RF a basse perdite connettori SMA, 5 meters, cod. 90.91.005
Low-loss RF SMA cable extension, 10 meters, cod. 90.91.010
Cavo prolunga RF a basse perdite connettori SMA, 15 meters, cod. 90.91.015
Low-loss RF FME cable extension, 2.5 meters, cod. 90.91.102
Low-loss RF FME cable extension, 5 meters, cod. 90.91.105
Low-loss RF FME cable extension, 10 meters, cod. 90.91.110
Low-loss RF FME cable extension, 15 meters, cod. 90.91.115
FME male - SMA male adapter cod. 90.93.001
FME female - SMA male adapter cod. 90.93.002
