remote assistance and
REMOTE CONTROL

INDUSTRIAL ROUTER WITH VPN FOR REMOTE MAINTENANCE

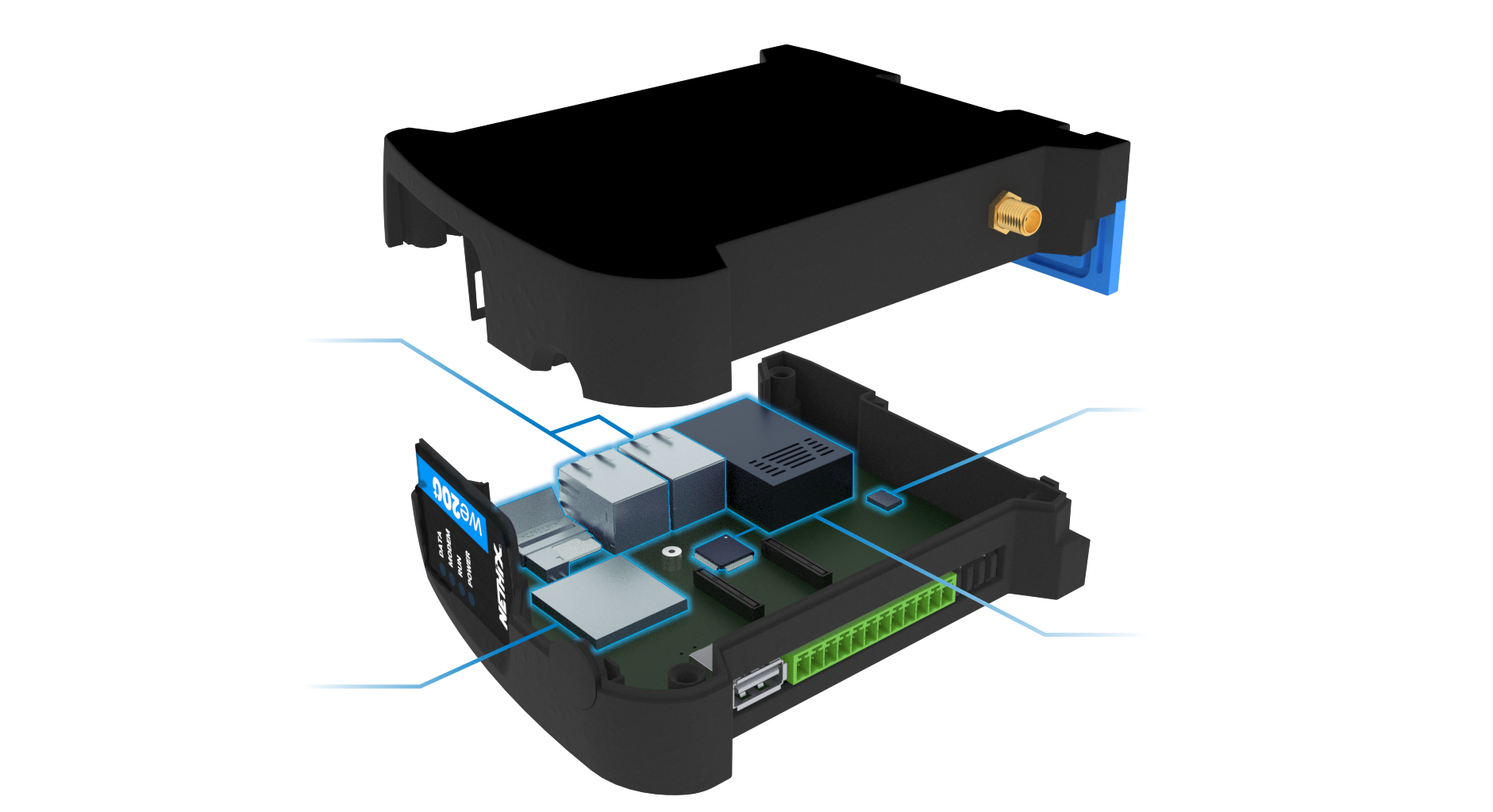

WE200+ is a reliable and efficient 4G industrial router, that allows the remote access to any device, machine or plant through serial, Ethernet, USB interface and optical fiber.
It’s the right choice for the remote configuration and maintenance. WE200+ is compatible with all devices having serial ports RS232/RS485 and USB, independently from the used protocol.
Thanks to the integrated Web Interface, WE200+ offers an easy and intuitive configuration, and doesn’t require any particular training or specialization.

DIRECT CONNECTION TO YOUR MACHINE

Thanks to WE200+ you can shorten the distance between you and your machine, and you can manage it from any place.

THE RIGHT SOLUTION FOR ANY REQUIREMENT

WE200+ is available in 4 different versions, according to the type of connectivity, that may be required by the user:

WE200+ 4G/OPT

- Ethernet
- Wi-Fi
-LTE
-OPT

WE200+ LAN/OPT

- Ethernet
- Wi-Fi
-OPT

WE200+ 4G

- Ethernet
- Wi-Fi
-LTE

WE200+ LAN

- Ethernet
- Wi-Fi

WEB SERVER


The configuration of WE200+ is carried out on the integrated, remotely accessible Web Server.
Through any browser, with no need of any additional software, it’s possible to access the device and monitor the system status and parameters in real-time.


WE200+ grants a secure and transparent VPN connection between your PC and the device/PLC to be controlled.

USE MODES

WE200+ offer different way to organize your communication:

REMOTE ACCESS

Remote communication to any device/machine connected to one of the serial or USB interfaces

PORT FORWARDING

Secure remote access to one or more devices

ROUTING

It supplies a secure connection to your devices

TECHNICAL SPECIFICATIONS

Power supply9-32 VDC
ConnectivityIntegrated LTE modem
LTE (2600-2100-1800-900-850-800 MHz)
GSM (900-1800 MHz)
Integrated Wi-Fi module
WiFi: 2.4 GHz (b/g/n)
Ethernet
10/100 Mbps
OPT
100Mbps
Input1 dry-contact digital input
Output1 relais output
1A 230Vac/30VDC
PortsUSB Type-A
1 RS232 serial port
1 RS485 serial port
1 optical fiber port(optional)
Consumptionaverage 500mA, peak 2A
Dimensions (L x W x H)45 x 120 x 100 mm
Weight217g
Working temperature-15°C - +55°C
Storage temperature-25°C - +85°C
Humidity0% - 80% (non condensing)
