Complete and redundant solution for high performances

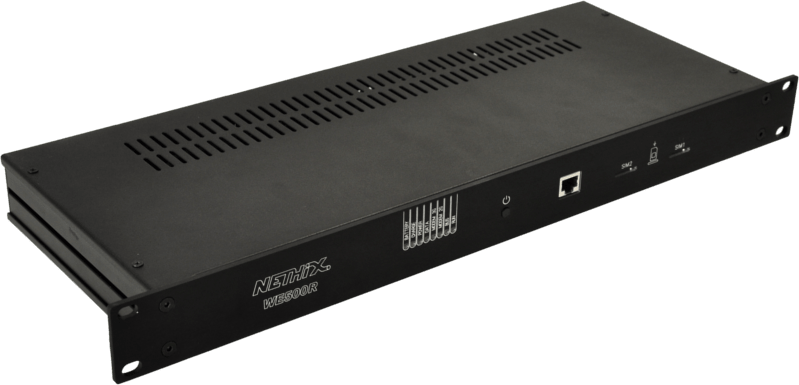

WE500R is a complete solution for redundant and reliable remote monitoring and control. The double communication channel (two modems, two SIMs and two antennas) and the integrated UPS allow to keep the system data of any Rack-station permanently under control, collecting all functioning-logs and sending them optionally to a server or cloud, using secure communication channels.
WE500R is specifically designed for the ICT and BROADCASTING industry.
Monitors the system status and detects parameters changes. WE500 provides a sophisticated events system that allows to send SMS, emails or rings, when it detects changes in activation threshold, in one or more parameters simultaneously or even based in mathematical expressions.
Stores periodically the system parameters specified by the user. All the monitored parameters and triggered events are stored in the capable internal memory, in an external USB key or they can even be sent to a web portal at user defined intervals.
Through a VPN channel WE500 provides a direct and transparent communication to the monitored devices and machines. It allows to interact in real time and provide remote assistance.
Remotely handles the different functions of a system: switching on/off, parameters settings and thresholds activation. WE500 provides different communication mechanisms for system controlling, including the most popular protocols of the Indystry 4.0 (Modbus, TCP/IP and others).
Dual modem 3G+2G, LAN, WLAN, USB, WIFI redundancy
I/O module composed of 6 digital inputs, 2 analogue inputs and 2 digital outputs
Simple and intuitive user interface
The WE500R can be completely configured and monitored directly through its built-in web interface; there is no need to install additional software. Back-up and restore functionalities allow to replicate a configuration across many devices making the configuration of several racks or cooling units extremely fast.
All data monitored by WE500 can be displayed in real-time, using multi-trace graphics or tabulates.
The new Dashboard allows to customize the device interface according to the specific requirements of the application.
It provides a wide choice of ready-to-use tools and allows to upload external images or graphic elements, in order to develop a dedicated and intuitive visualization of the performance of each single plant or device.
Its functioning requires only a power source and an enabled SIM card.
WE500R can be completely configured and monitored through the internal web based interface.
The functioning of the device doesn’t need any kind of human interaction.
WE500R is the ideal device for custom solutions. Its hardware and software can be easily customized according to the specific requirements of the customer, since it has been entirely designed, developed and manufactured by Nethix inside the Italian factory.
WE500R is a core product inside Nethix ecosystem and can be perfectly integrated with all other services offered by Nethix. Nethix Cloud provides the possibility of controlling and monitoring also extensive installations, composed by several machines and devices.
|CPU||CPU ARM9 AT91SAM9260 @ 210MHz|
|Flash||1 GByte NAND|
10Mbps downlink / 5Mbps uplink (LTE)
Quad band GSM/GPRS/EDGE
Quad band LTE
14.4Mbps downlink / 5.76Mbps uplink (HSPA)
Quad band GSM/GPRS/EDGE
Quad band HSDPA/HSUPA
Quad band GSM/GPRS
|Communication||1 serial port RS232, 1 serial port RS485, WiFi (optional), USB host|
|Digital inputs||6 inputs, non isolated, dry contact|
|Analog inputs||2 inputs, non isolated, 0-5V, 0-10V 0..20mA|
(configurable for 4..20 mA), NTC 10K
|Digital outputs||2 relay, 1A 30VDC|
|Power supply||230 VAC, 50Hz|
|UPS integrated||Set of 10 NiMh 2100 Mah|
|Average absorption||150 mA RMS|
|Assorbimento massimo||300 mA RMS|
|Dimensions (L x W x H)||480 x 180 x 45 mm|
|Box||Aluminum, 1U rack mountable|
|Storage temperature||-25° C - +85° C|
|Working temperature||-10° C - +60° C|
|Humidity||5% - 95% (non condensing)|
