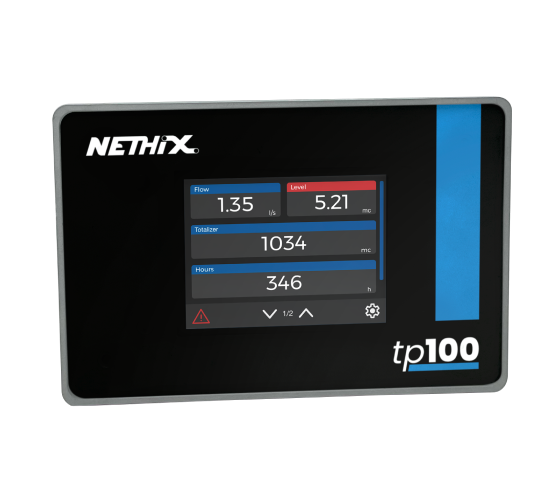

TP100
Touch display

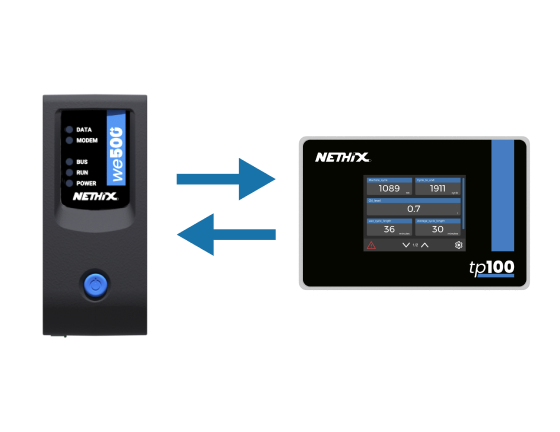

TP100 is part of Nethix touch panels' family. It's compatible with WE500+ and any other Modbus device; it allows to visualize all Modbus variables in real-time.
TP100 acquires the status of the signals, coming from the devices connected to the communication bus, and shows them on the display through a user-friendly interface.
It also allows to display the trend of the signals over time on real-time diagrams and highlight possible alarm situations.

Main functions

• Visualization of Modbus variables
• Management of up to 20 variables
• Customizable layout of the pages
• Configuration upload through USB-C
• Automatic page-rotation with configurable timing
• TCP and RTU Modbus Client with configurable polling-time
• Password protected variables
• Alarm visualization in case of threshold-crossing
• Stand-by display for energy saving

Just one click

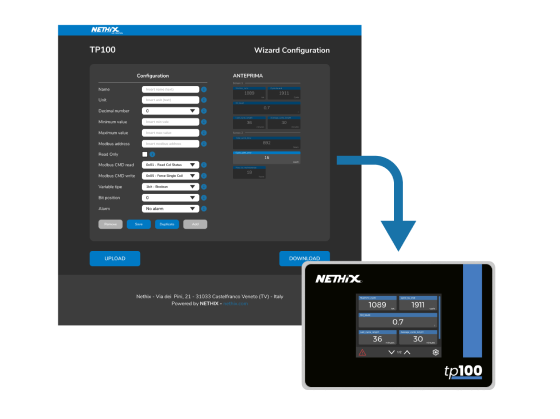

The configuration of TP100 is very easy: it's possible to enter the configuration wizard through any web-browser; on the wizard it's possible to set the registers to be acquired and show or adjust the position on display, thanks to a preview available in real-time.
Once the configuration is completed, it's possible to download the generated file and transfer it to the TP100 via USB, without need of using any additional Software or driver on the PC.
