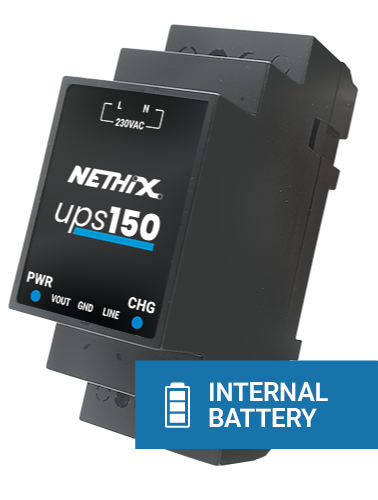

UPS150

UPS150 is the light and compact switch mode power supply unit specifically designed and developed for being used with WE151 and WE152 devices.

TECHNICAL SPECIFICATIONS

Input voltage range (nominal)	195-265 VAC / 50 Hz
Output voltage (nominal)	12 V with network 9 V without network
Output current (nominal)	1.25 A with network 0,5 A (2 A peak) without network
Efficiency	0,8
Isolation	3000 VAC
Battery	1 battery Li-Po 3,7V 850mAh
Dimensions (L x W x H)	35 x 90 x 54,5 mm
Weight	115 g
Box	Plastic, DIN bar mountable
Working temperature	-20° C - +45° C
Storage temperature	-10° C - +50° C
CE certifications	BS EN/EN55032(CISPR32), CNS13438, BS EN/EN61000-3-2, BS EN/EN61000-3-3,BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5,BS EN/EN61000-4-6, BS EN/EN61000-4-8, vBS EN/EN61000-4-11
