tiny, but
POWERFUL

THE COMPACT AND PROGRAMMABLE IoT MODULES

The mini programmable controllers of the Nethix series WE11X present four different models for remote control and monitoring applications.
Versatility is their strenght. Thanks to the compact dimensions and the configurability of the input on board, these devices offer the right solution for several IoT applications: from the management and control of domestic heating, lighting or watering systems; to the controlling of small automated plants and machines in the agricultural, meteorological or water sector, and many others.
The VPN (Standard Open VPN) is also supported and allows to access remotely any device, independently from the used connection.
The WE11X products acquire data from the field through a configurable input and make them available on Cloud or Server. Thanks to their programmable logics, they also allow to manage alarms and/or automated actions.

APPLICATIONS

- Smart systems
- Lighting
- Water networks monitoring
- Access control
- Smart Agriculture
- Weather Monitoring
- Vending machines

THE RIGHT SOLUTION FOR ANY REQUIREMENTS

Every model supports a different communication protocol, in order to offer the right solution for any application.

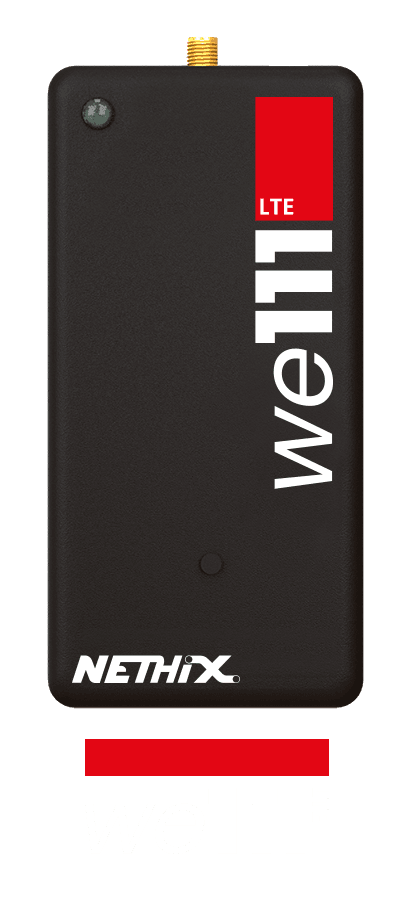

LTE technology

Communication on mobile network; a SIM CARD is required

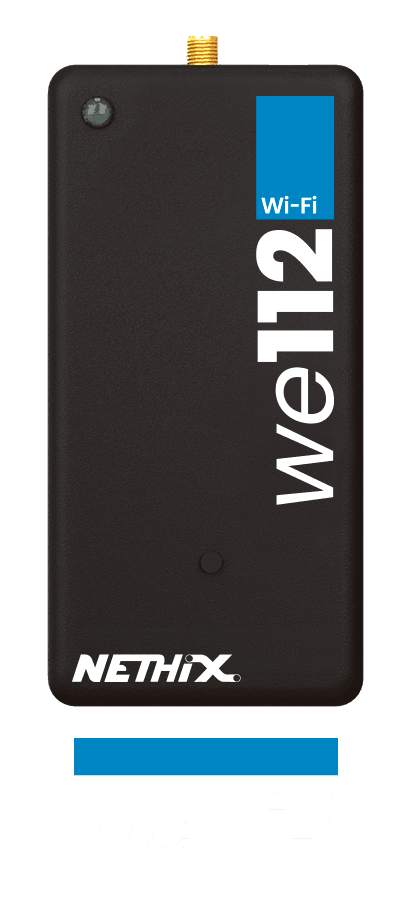

Wi-Fi technology

The device communicates using the local Wi-Fi network

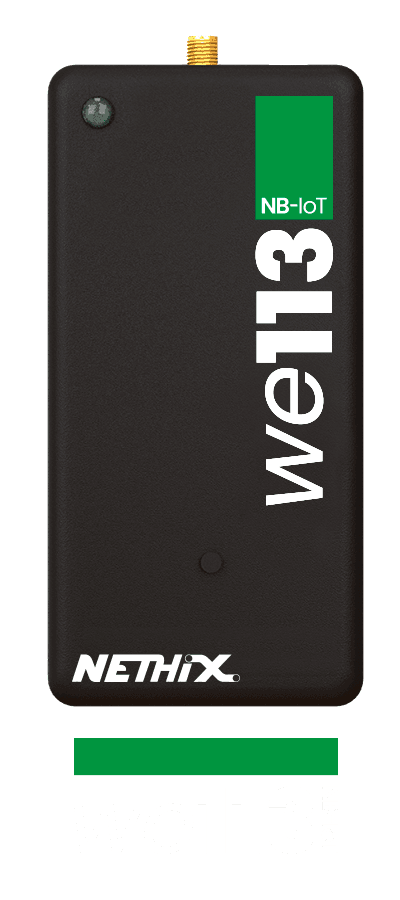

NB-IoT technology

Ideal for IIoT solutions, low data consumption

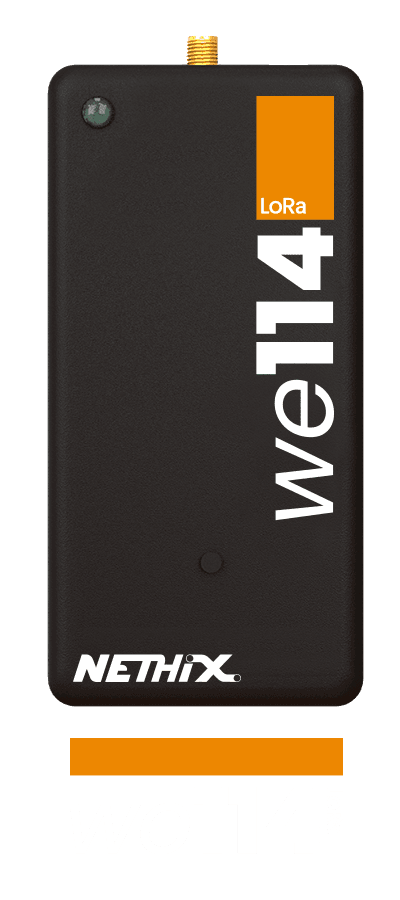

LoRa® technology

To integrate sensors inside a LoRaWAN network

WEB SERVER


The device configuration of the WE11X series is made on the integrated, remotely accessible Web Server.
Through any browser, with no need of any additional Software, it’s possible to access the device to set alarm thresholds, monitor the system status in real-time and change setpoints and operational parameters.

CHAT


An instant messaging service is available to communicate with the devices in real-time: to send commands, get alarms and notifications.

ONE DEVICE, TWO MODALITIES

The devices WE11X offer two different ways to communicate:

STANDALONE MODE

Point-to-Point communication and data delivery from the machine to the Cloud/Operator.

MULTI NODE

The devices are nodes of a network, where the single nodes can communicate with each other thanks to MQTT protocol.

TECHNICAL SPECIFICATIONS

Power supplyThrough USB-C cable 5VDC
Connectivity        Integrated LTE modem
        LTE (2600-2100-1800-900-850-800 MHz) / GSM (900-1800 MHz)
        Integrated Wi-Fi module
         Wi-Fi: 2.4 GHz (b/g/n)
        Integrated NB-IoT module
         LTE (2100-1900-1800-1700-900-850-800-700 MHz)
        Integrated LoRa® module
         LoRa: 868-915 MHz
Input1 PROGRAMMABLE INPUT
ANALOGIC
0-5Vdc / 0-20mA / 4-20 mA / NTC
DIGITAL in dry contact
Mode: Counter | On/Off | Hour meter | Flow meter
Data deliveryNethix Cloud | Email report | Chat | HTTP/HTTPS | MQTT/MQTTS
Output1 RELAY OUTPUT
2A@30VDC / 0.5A@230VAC
LEDLED RGB
Consumptionaverage 500mA, peak 2A
Dimensions (L x W x H)40 x 23 x 85mm
Weight55 g
Working temperature-15°C - +55°C
Storage temperature-25°C - +85°C
Humidity0% - 80% (non condensing)
