DeepLog LITE is designed for data collection in remote location and adverse environmental conditions. The guaranteed autonomy of the integrated battery pack allows the device to work without connection to the power supply network. The device works in low power mode and wakes up only for executing the data collection and delivery according to the configuration made by the user.

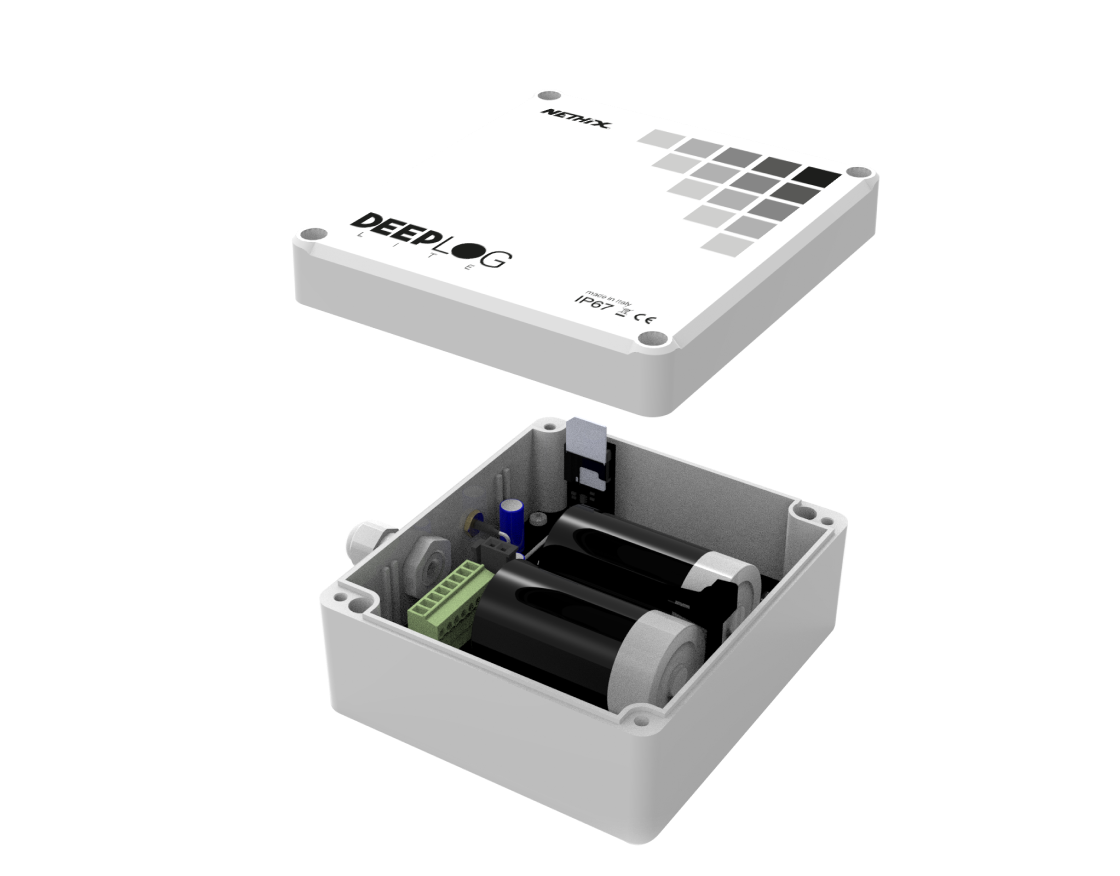

Removable battery
For an easy replacement
Two models
LTE or LoRa connectivity
Robust
IP67
protection rate
Data delivery to cloud
Constant supervision of the plant

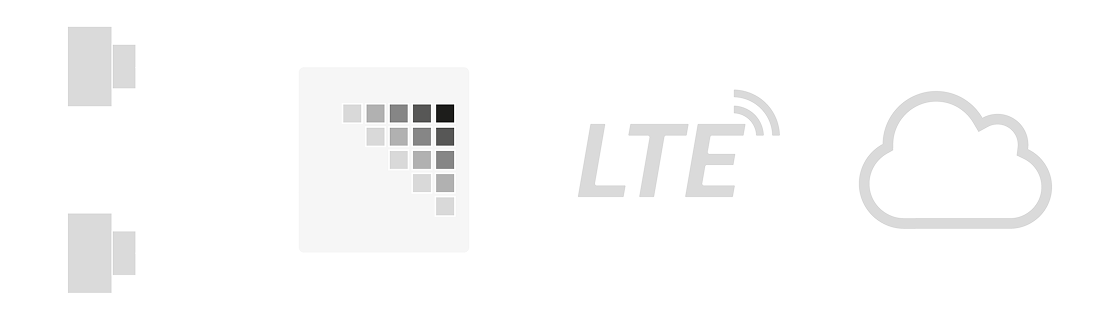

The LTE device acquires signals from the cabled sensors and forwards them thanks to the connection granted by the integrated LTE modem and the SIM (not included). On request is available the Modbus option for the collection of data from third party devices. Data can be delivered to DeepLog Cloud or any other IoT platform using standard protocols such as MQTT/S, HTTP/S and FTP/S (on request).

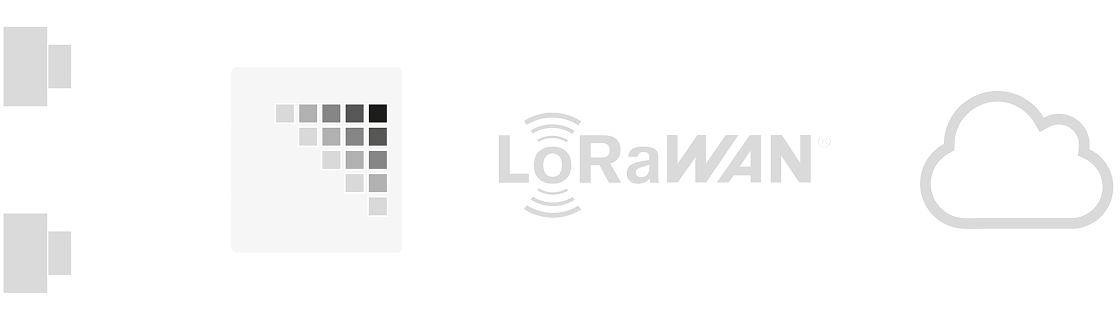

The LoRa device acquires signals from cabled sensors and forwards them via LoraWAN to the network gateway. Immediately after the transmission the device opens a window in order to receive in-coming data packs, allowing the activation of the available digital outputs. This makes DeepLog LITE a bidirectional hub, that meets user's needs and interacts with automation systems or dedicated cloud platforms.
DeepLog LITE can be easily configured in two different ways:
- Using the on-line Wizard (free of charge), that allows to configure all necessary parameters and to download a configuration file to be then uploaded via USB-C on the device.
- Using the App, that allows to set up the device very easily and to transfer the parameters via NFC, just holding the smartphone close to the device.
On the LTE model, once associated the device with an IoT platform, it's also possible to change the configuration remotely, using protocols as HTTP and MQTT
Dimensions (L x W x H) | 137.8 x 125.3 x 58 mm |
Power supply | battery (replaceable) 7.2VDC / 19 Ah - Li-SOcl₂ |
Communication | Modem LTE NFC |
Supported protocols | HTTP / HTTPS / MQTT / MQTTS Optionals: FTP / FTPS |
Input / Output | 3 independent analog inputs 0-5V / 0-10V / 0-20mA / 4-20 mA (active or passive) 3 configurable dry contact digital inputs |
Sensors power supply | 12 VDC @ 50 mA |
Ports | USB-C for configuration Optional: RS485 for Modbus |
Data acquisition | from once a minute up to once every 24 hours |
Data delivery | from once every 15 minutes to once every 24 hours |
Working temperature | -40°C +70°C |
Storage temperature | -40°C +85°C |
Dimensions (L x W x H) | 137.8 x 125.3 x 58 mm |
Power supply | battery (replaceable) 7.2VDC / 19 Ah - Li-SOcl₂ |
Communication | LoRa NFC |
Supported protocols | LoRaWAN Class A |
Input / Output | 3 independent analog inputs 0-5V / 0-10V / 0-20mA / 4-20 mA (active or passive) 3 configurable dry contact digital inputs 2 bistable outputs 250 VAC @5A |
Sensors power supply | 12 VDC @ 50 mA |
Ports | USB-C for configuration |
Data acquisition | from once a minute up to once every 24 hours |
Working temperature | -40°C +70°C |
Storage temperature | -40°C +85°C |
