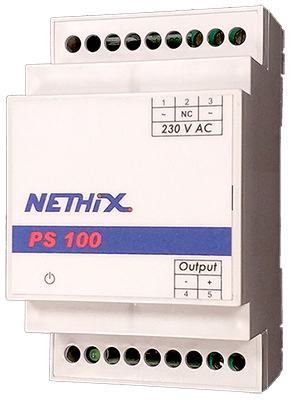

PS100
PS100 are switching power supply units, specifically designed and developed for integration with Nethix controllers.
Offering the highest precision and reliabilty in a compact format, the PS100 switching power supply units are ideal for industrial or residential applications, as stand-alone units or inside control panels.
Suitable for mount on DIN BAR (EN60715), PS100 are protected against short-circuit and provided with thermal insulation.
Available models:
PS100 12V/2A Available also with 13,6V output for battery use
PS100 24V/1A Available also with 27,2V output for battery use
| Nominal input voltage | 195-265 Vac / 50 Hz |
| Nominal output voltage | 12 / 13,6 / 24 / 27,2 VDC |
| Nominal output current | 1 A (PS100-24V) / 2A (PS100-12V) |
| Power | 24 W |
| Efficiency | 0,8 |
| Output regulation | +/- 4% |
| Frequency | 100 KHz |
| Isolation | 3000 Vac |
| Dimensions (L x W x H) | 52 x 89 x 58 mm |
| Box | DIN-BAR mountable dark gray plastic enclosure |
| Storage temperature | -25° C - +85° C |
| Working temperature | -10° C - +50° C |
| Humidity | 5% - 90% (non condensing) |
| Cooling system | Natural convection |
| Protection | Electronic (short-circuit, overload and thermal) |
| CE certification | EN60950, EN50081-1, EN5081-2, EN55022, EN55024 |
