T-ANTENNA

90.90.034

Multi band dipole array

790 - 960 MHz (GSM 900 and LTE 800); 1710 - 1880 MHz (GSM 1800); 2.4 - 2.7 GHz (WLAN and LTE 2600)

50 Ω

Linear vertical

360° omnidirectional

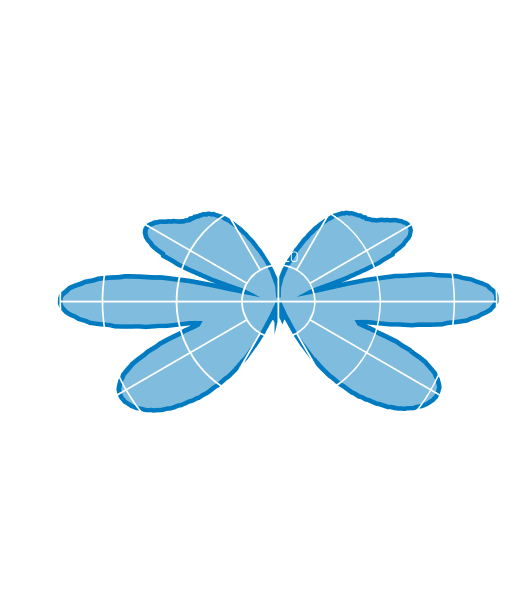

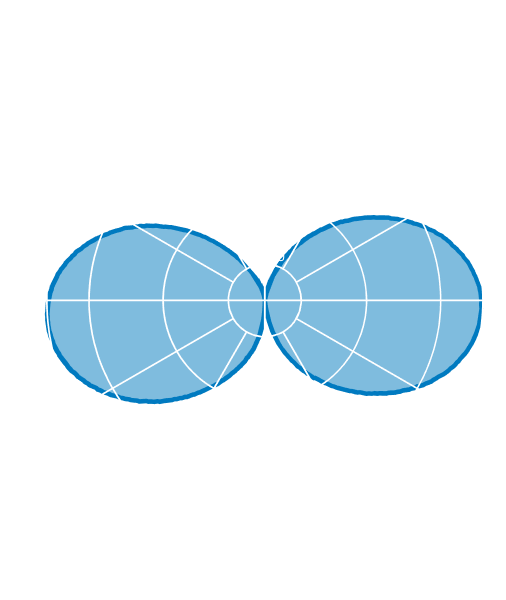

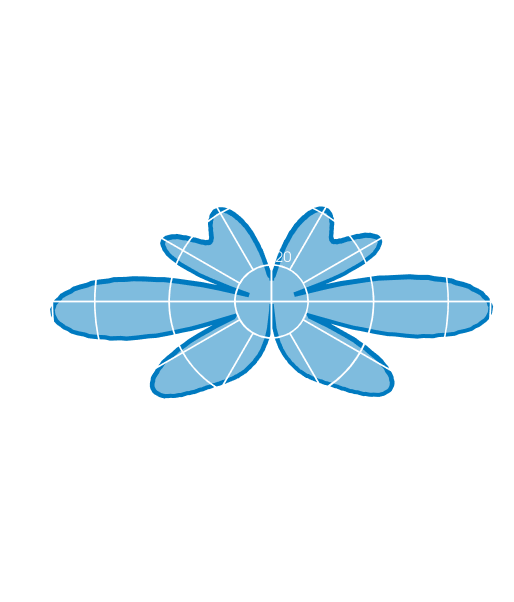

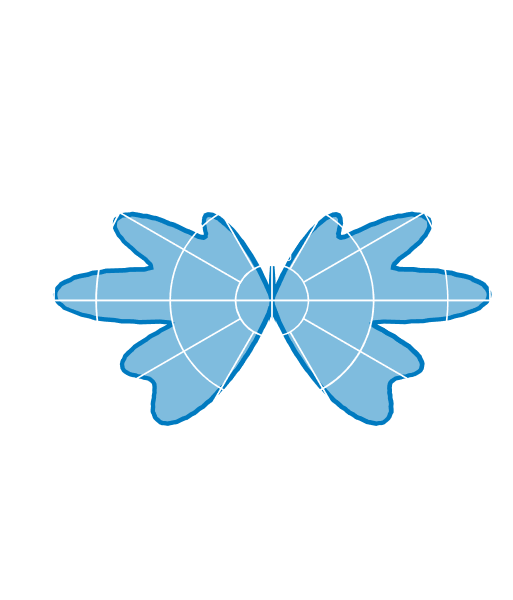

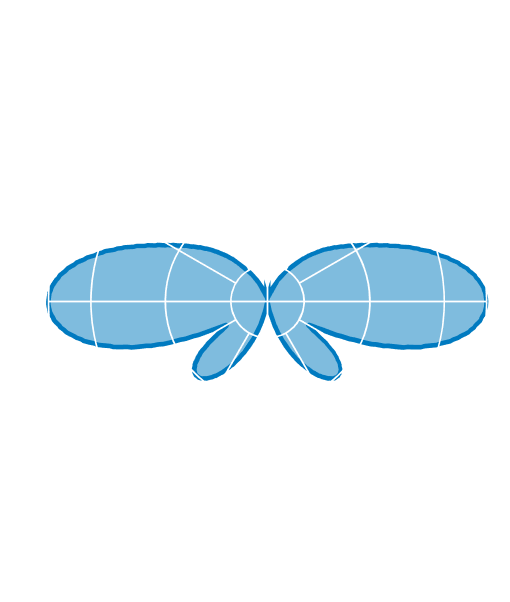

Beamwidth @ -3 dB (see diagrams)

0°

5 dBi (GSM 900/1800 and LTE 800); 6 dBi (UMTS); 5÷6 dBi (WLAN and LTE 2600)

20 W (GSM 900 and LTE 800); 10 W (GSM 1800 and UMTS); 6 W (WLAN and LTE)

5 m - low loss

SMA male

Galvanized steel; UV stabilized thermoplastic, grey RAL 7035

36 N

200 km/h

0.02 m²

-40 °C - +80 °C

335 x 166 x 144 mm (with brackets)

350 g

Mast: Ø 25-42 mm with U-bolt (included); Wall: mounting screws (not included)
