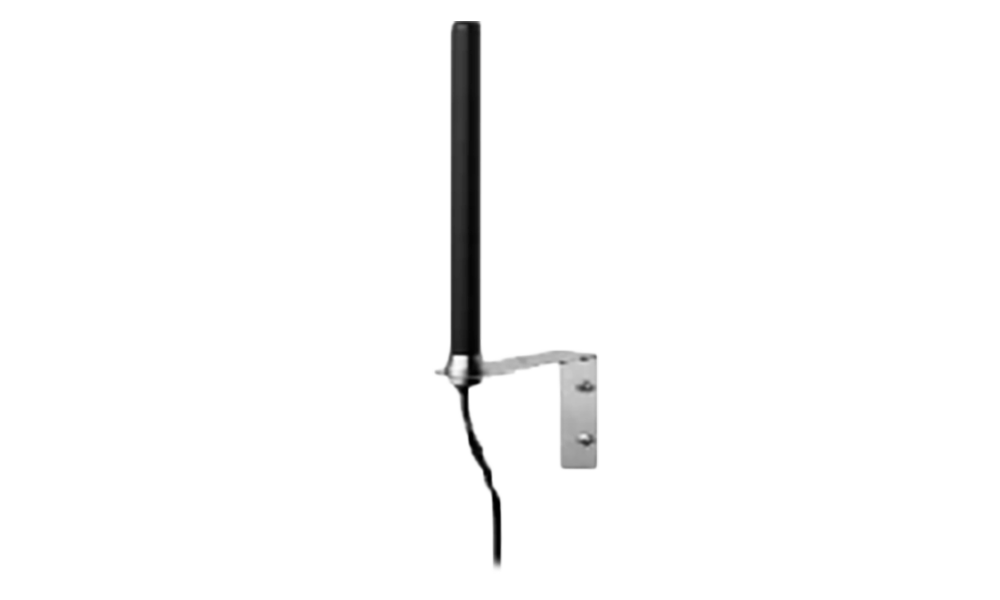

Wall high-gain omnidirectional antenna

Quad band high-gain omnidirectional antenna for external use. Wall mounted. Normally used when signal strength is weak and a directive antenna cannot be used. Thanks to its excellent mechanical resistance and electrical characteristics, this antenna is suitable for remote areas and noise-prone environments where reliability is fundamental.

Request your quote

Technical specifications

Part number

90.90.024

Connector

SMA male

Frequencies

LTE 700 + GSM 900: 698 - 960 MHz GSM 1800: 1710 - 1880 MHz UMTS: 1920 - 2170 MHz WLAN + LTE (High): 2300 - 2700 MHz

Impedance

50 Ohm

Average gain

LTE 700 + GSM 900: 3.1 dBi GSM 1800: 0.4 dBi UMTS: 3.8 dBi WLAN + LTE (High): 1.6 dBi

Polarization

Linear

VSWR

≤ 2.1 (all bands)

Cable length

5 m

Weight

355 g

Working temperature

-40° C - +85° C

Humidity

5% - 95%

Protection

IP66 (IEC 60529)
