MINI WHITE STICK

90.90.035

Collinear dipole array

790 - 960 MHz (LTE, ISM, GSM 900); 1.71 - 2.7 GHz (GSM 1800, PCN DECT, UMTS, WLAN, LTE)

50 Ω

360° omnidirectional

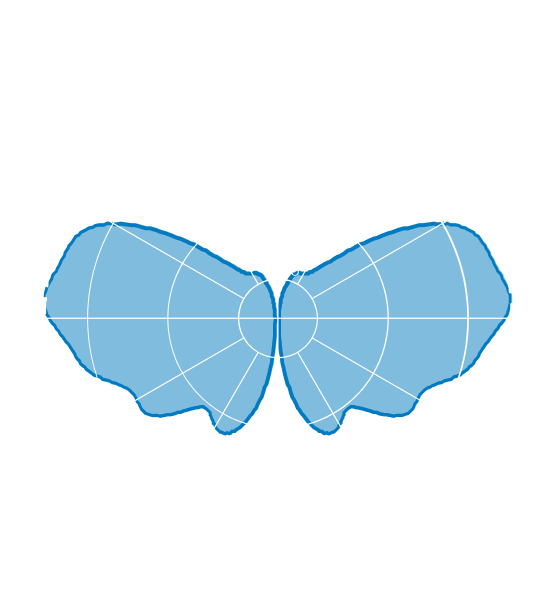

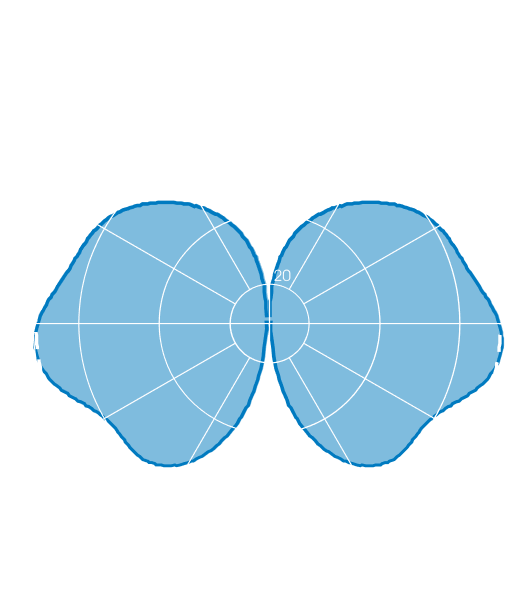

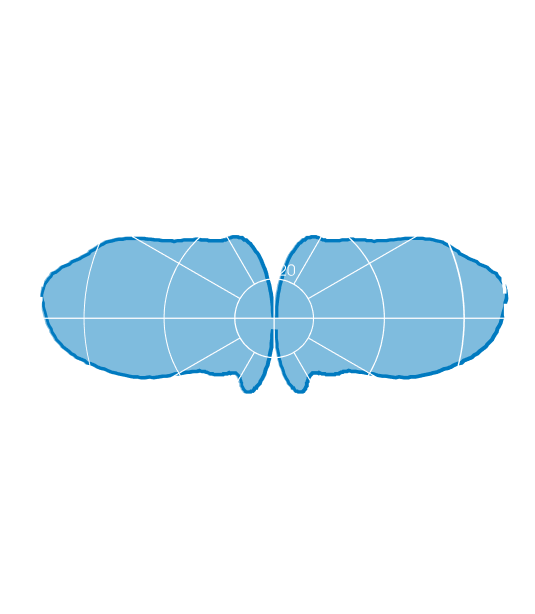

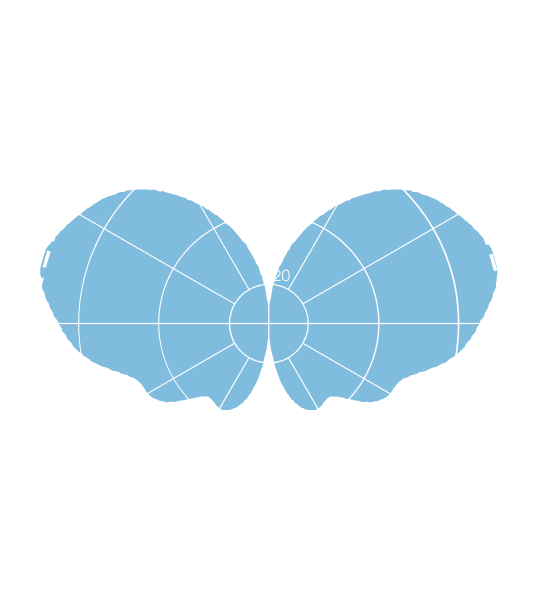

Beamwidth @ -3 dB (see diagrams)

(see diagrams)

Linear vertical

2 dBi @ 790 - 960 MHz; 4 dBi @ 1.71 - 2.7 GHz

50 W @ 790 - 960 MHz; 40 W @ 1.71 - 2.7 GHz

5 m - low loss

SMA male

Anodized aluminium; chromed brass; fiberglass

14 N @ 150 km/h - 200 km/h

0.011 m²

-30 °C - +70 °C

300 mm

495 g

IP64

Mast: Ø 35-42 mm with U-bolt (included); Wall: mounting screws (not included)
