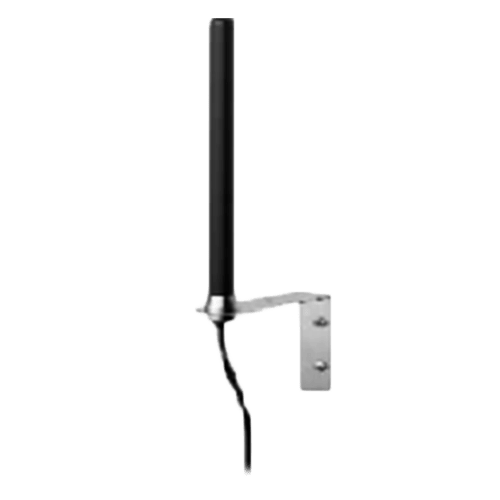

Wall high-gain omnidirectional antenna
Quad band high-gain omnidirectional antenna for external use. Wall mounted. Normally used when signal strenght is weak and a directive antenna cannot be used. Thanks to its excellent mechanical resistence and electrical characteristics, this antenna can be used in remote areas or noise-prone environments where reliability is fundamental.

| Part number | 90.90.024 |
| Connector | male SMA |
| Frequences: LTE 700 + GSM 900 GSM 1800 UMTS WLAN + LTE (High) | 698 - 960 MHz 1710 - 1880 MHz 1920 - 2170 MHz 2300 - 2700 MHz |
| Impedance | 50 Ohm |
| Average Gain: LTE 700 + GSM 900 GSM 1800 UMTS WLAN + LTE (High) | 3.1 dBi 0.4 dBi 3.8 dBi 1.6 dBi |
| Polarisation | Linear |
| VSWR | ≤2.1 (All bands) |
| Cable lenght | 5 m |
| Weight | 355 g |
| Working temperature | -40° C - +85° C |
| Humidity | 5% - 95% |
| Protection | IP66(IEC 60529) |
