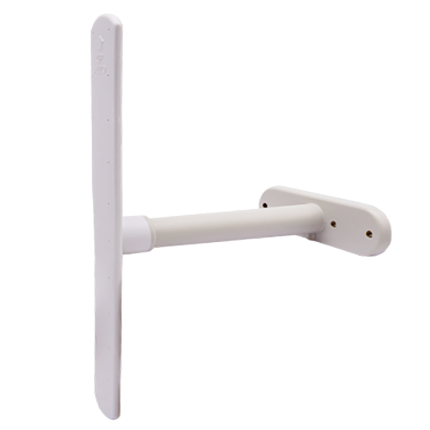

Antenna multiband omnidirectional
Ideal both for indoor and outdoor applications. It's designed and manufactured with specific plastic materials, that make it weather-resistant.
It covers the frequencies of GSM 900/1800, UMTS, WLAN(2600) and LTE (800/2600), and grants high gain performance, allowing a fast and stable reception. It can be mounted on wall or mast. An SMA low loss cable is included in the packaging.
Part number | 90.90.034 |
Type | Multi Band Dipole Array |

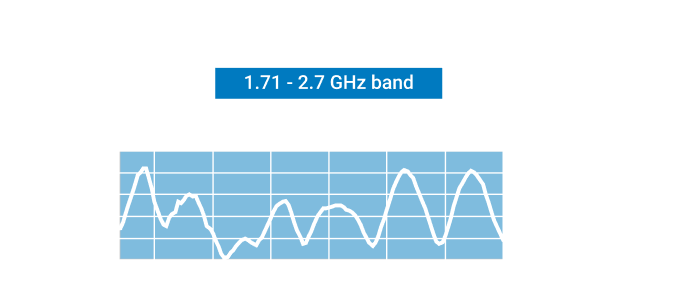

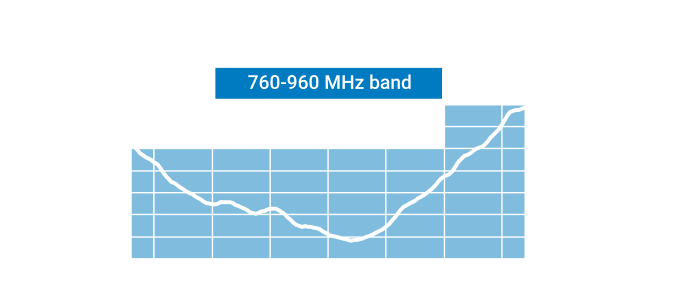

Frequency range @ SWR ≤ 2.2 | 790 - 960 MHz (GSM 900 and LTE 800) 1710 - 1880 MHz (GSM 1800) 2.4 - 2.7 GHz (WLAN and LTE 2600) |
Impedance | 50 Ω |
Polarization | Linear vertical |
Radiation (H-plane) | 360° omnidirectional |

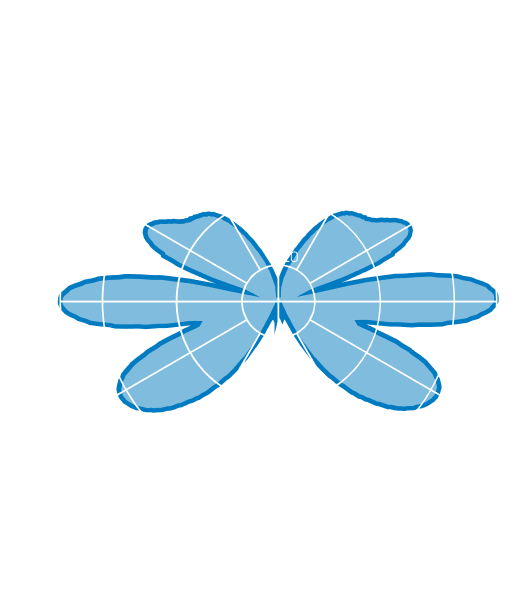

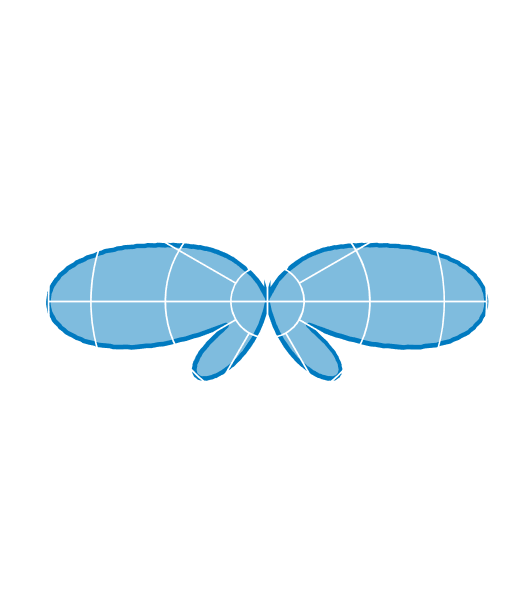

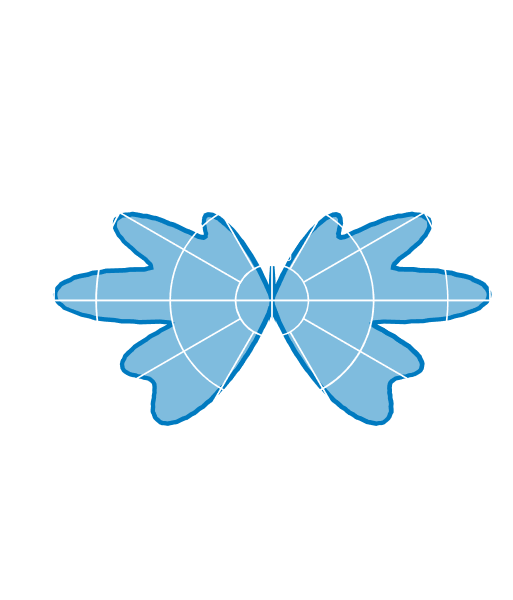

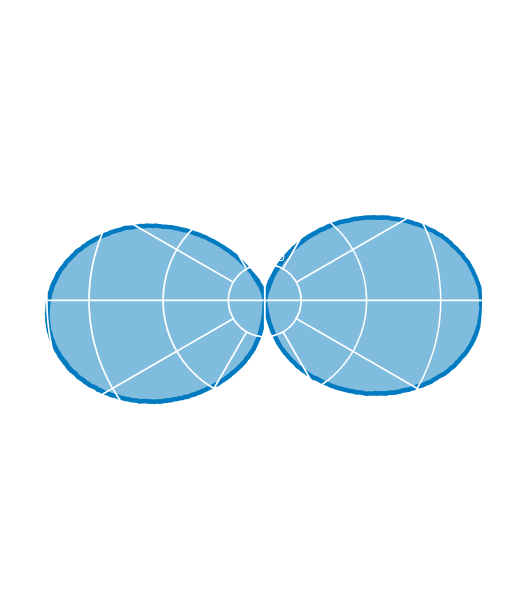

Radiation (E-plane) | Beamwidth @ -3dB (see diagrams) |
Radiation angle deg. | 0°C |
Gain | 5 dBi (GSM 900/1800 and LTE 800) 6 dBi (UMTS) 5÷6 dBi (WLAN and LTE 2600) |
Max power (CW) @ 30 °C | 20 Watt (GSM 900 e LT800) 10 Watt (GSM1800 e UMTS) 6 Watt (WLAN e LTE) |
Cable type | 5 m - Low Loss |
Connector | SMA male |
Materials | Galvanized steel Thermoplastic UV stabilized Grey RAL7035 |
Wind Load @ 150 km/h | 36 N |
Wind resistance | 200 km/h |
Wind surface | 0.02 m² |
Operating temperature | -40 °C — + 80 °C |
Dimensions | 335 x 166 x 144 mm with brackets |
Weight | 350 gr |
Installation type | Mast : Ø 25-42mm with U-bolt (included) Wall: mounting screw (not included) |
