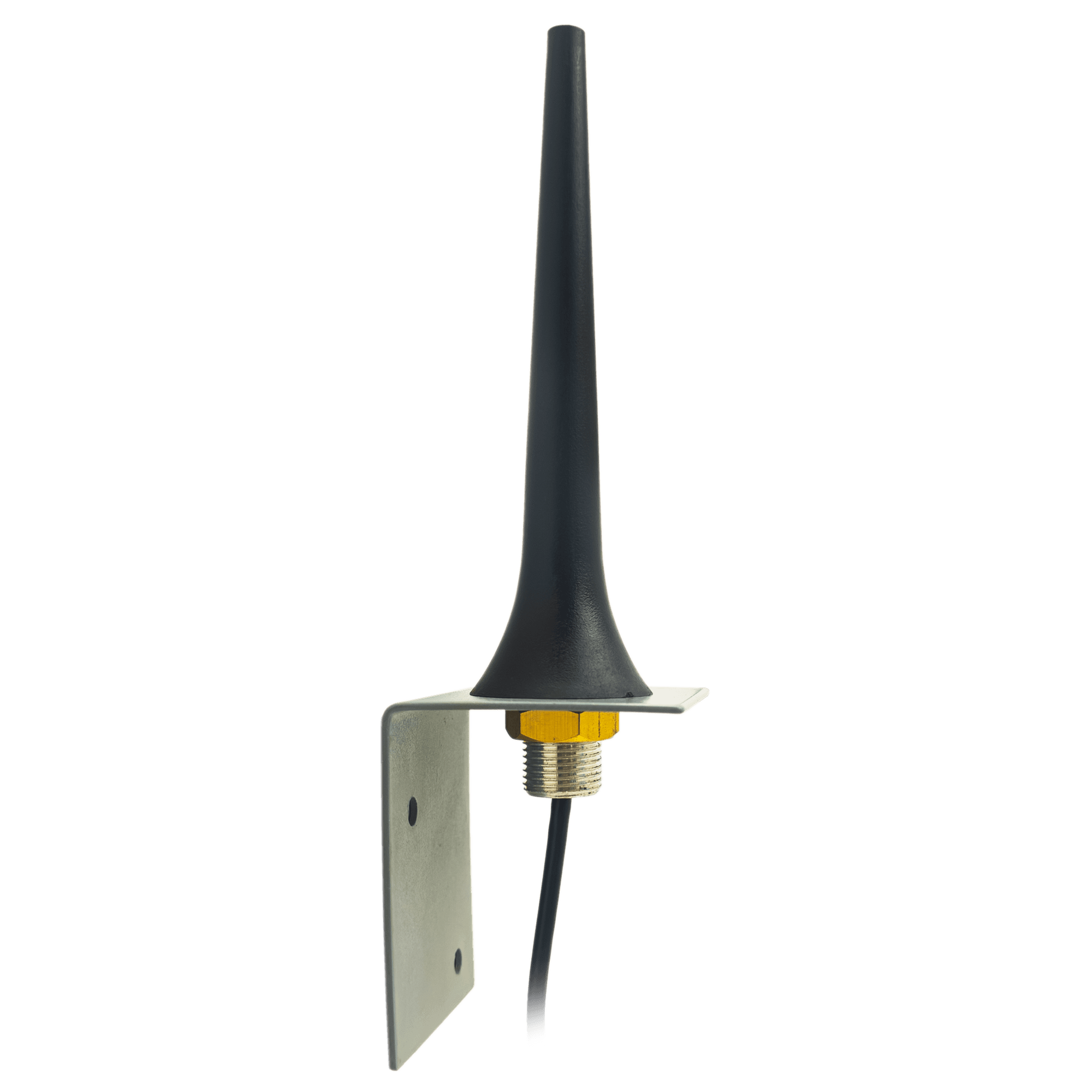

All Band Antenna
Omnidirectional antenna for internal and external use. For installation it requires the bracket included in the packaging or a metal panel acting as a ground plane. It is typically used in remote management and M2M applications, where the antenna needs to be installed outside electrical cabinets or buildings.
Technical specifications
90.90.005
3.8 dBi
50 Ohm
60 W
668 MHz; 960 MHz; 1710 MHz; 2100 MHz; 2400 MHz; 2700 MHz
Linear vertical
5 m
95 x 2 x 2 mm
-45° C - +85° C
5% - 100% (non condensing)
IP66
