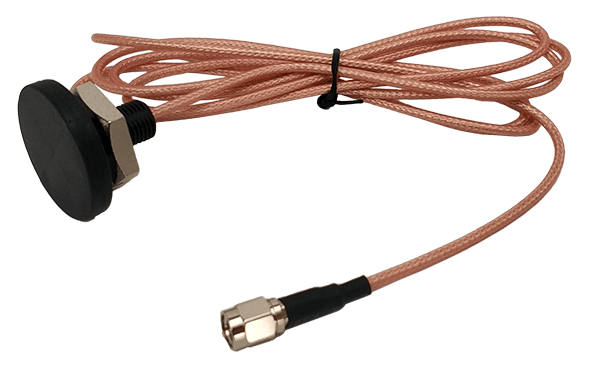

Manhole antenna
Antenna for manhole covers and water meters. Ideal for outdoor installation on roads and pathways. It grants high 2G, 3G and 4G performance.
Part number | 90.90.027 |
Gain | 0.5 dBi |
Impedance | 50 Ohm |
Frequencies | 824-960 MHz / 1710-2170 MHz |
Polarisation | Linear |
V.S.W.R. (min) | < 2.0 |
Connector | SMA male |
Cable length | 1 mt |
Cable type | RG178 |
Dimensions | 5.8mm H x 29mm Ø |
Protection | IP68 |
Operational temperature | -40° C - +85° C |
